Solid Fuel Fired with Stocker
Product Description
Technical Data
Documents
Fiyat Listesi
| USAGE AREAS |
| ■ Places that need steam generation by firing coal, |
■ Can be converted on to Gas-Liquid fired system, |
| ■ Places that aims to reduce fuel costs, |
■ Can be activated immediately with electricity, water fuel and chimney connection, |
| ■ Places that need rapid steam, |
■ Can be used at all places, that wish to consume less fuel with high efficiency, |
| ■ Places that need complete set of boiler room, |
■ Safe and fully automatic, |
| ADVANTAGES |
| ■ Reacts to instantan steam traction, due to high steam capacities, |
■ Temperature of the flue gas reducing condensation temperature and provides high efficiency with economizer, |

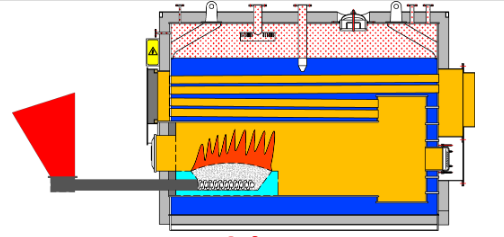

| ■ Provides lower nitrogen oxide emissions with 3-pass desing, |
■ Radiation loss is prevented by rear smoke box and water coler system, |
| ■ Staircase and platform provides easy and safe acces beween floor levels and boiler, |
■ Heat loss is prevented by mesh wire rockwool insulation, |
| ■ Alumina-doped refractory is resistant to high temperature, durable and insulated, |
■ Simple to operate and maintain, |
| ■ Can be converted on to Gas-Liquid system if needed, |
■ It is a compact structure consisting of; burning stocker, fixtures, pump, water softener unit and condensate tank. |
| ■ Can easily fit in a small areas. |
|
| DISADVANTAGES |
| ■ Coal ash accumulates on the interior of the boiler as slog. To increase boiler efficiency ou will have to remote slag on a regular basis. |
■ Air ducts are clogged in stocker. Before cleaning, incline of the transport spirals is required. |
| FEAUTURES |
| Heat Capacities |
250-3.000kg/h (349-6.976kW) |
| Boiler Efficiency |
80% |
| Max.Operating Pressure |
3-16bar |
| Type |
Cylindrical-Horizontal |
| Fuel |
Lumb Coal, Bark |
| Design Code |
CE marked as per Pressure Equipment Directive
(PED 97/23/AT)
|
| Design Standart |
EN 12953 |
| Material |
|
| Furnace |
Plain/Corrugated heat resistant steel sheet in grade HI-HII |
| Rears |
Heat resistant steel sheet in grade HI-HII
P235GH-P265GH-P295GH-P355GH
|
| Shell |
P235GH-P265GH-P295GH-P355GH |
| Tubes |
P235GH-St35.8 |
| Bar stays |
P245GH |
| Flanges |
P235GH-P265GH |
| Insulation |
Mesh wire rockwool
Colored electrostatic powder coated carbon
steel sheet
|
| Refractory |
Resistance to high temperatures (1500 °C),
thermal shock and overload, high impact strenght |
