| GENERAL FEUTURES |

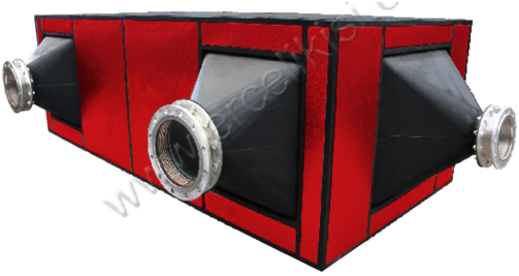

| ■ A waste heat recovery device using furnace exhaust gas preheat combustion air which results energy savings. |
■ The recuperator transfers some of the waste heat in the exhaust to the compressed air, thus preheating it before entering the fuel burner stage. |
■ Has short amortisation period between 3-10 month, which depends on capacities, intented use and duration of running period.
■ Depending on the operating conditions and design could be made as Fin-tube or Plain-tube. |
■ Each 20°C reduction in the temperature of the of the flue inert hot gases provides savings of approximately 1%(These values become higher in the case of condensation of Gas fired boilers flue gases)
■ Could be made as 2 stage type: 1st. Stage high-temperature water heater 2nd. Stage heating the combustion air. |
| ADVANTEGES |
| ■ Waste heat recovery and additional energy saving, |
■ Eco-friendly, |
| ■ Increase your production capacity and reduce energy bills, |
■ Each device has its own design according to customers needs and can easily fit at all types of working spaces, |
| ■ Heat loss is prevented by mesh wire rockwool insulation. |
|
| DİSADVANTEGES |
■ It creates counter pressure on the water and fule gas side.
■The flue gas temperature can fall below the condensing flue gas temperature. Correct design is required. |
■ May reduce burner and stack airflow. |
| TECNICAL FEUTURES |
| Heat Capacities |
50.000-3.000.000kcal/h |
| Max.Operating Pressure |
3-30bar |
| Max.Temperature |
100-1.200°C |
| Type |
Cylindrical-Horizontal |
| Fuel |
|
| Design Code |
CE marked as per Pressure Equipment Directive
(PED 97/23/AT).
|
| Design Standart |
EN 12952/EN 12953 |
| Material |
|
| Rears |
Stainless or Carbon Steel |
| Body |
Stainless or Carbon Steel |
| Tubes |
Welded |
| Flanges |
Stainless or Carbon Steel |
| Insulation |
Mesh wire rockwool
Colored electrostatic powder coated carbon
steel sheet
|
| |
|
