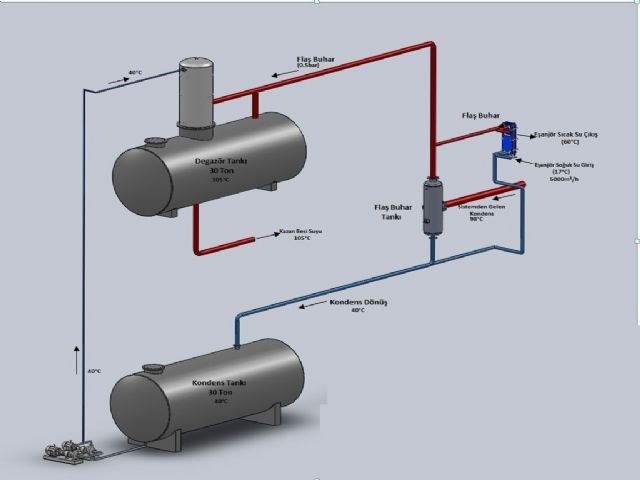

| Flash Steam Tank |
| ■ Designed to reduce the condensate from the heating system to 0.5 bar(g), |
■ In a result of pressure drop, occurs flash steam which uses for degasser heating, |
| ■ After flash steam passes to degasser the remaining water is directed to the blow tank, |
■ Diameter of the flash steam tank, should be at size which allows to pass condensante before turbulence starts, |
| ■ To separate water droplets from condensate flash steam, there should be enough space in the tank, |
■ Flash steam output speed must be under 15m/s. |
