GENERAL INFORMATION

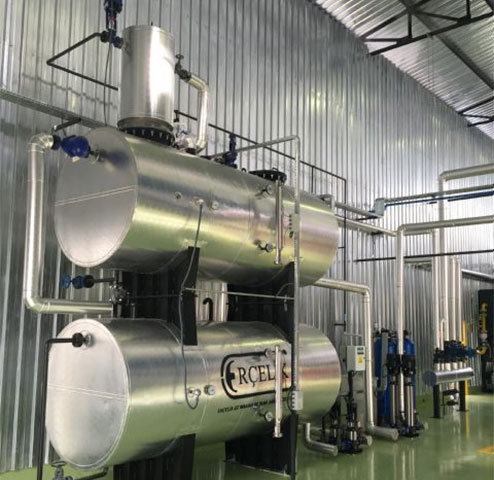

Degasser is the removal of dissolved gases CO2 and O2 from liquids.Emissions of these gases is due to a specially designed plates which are disposed in the diffuser.The condensate from the top part, is mixed with steam which enters from the bottom, leads to the emission o harmful gases and prolong the service life of the heat exchanger and the boiler fittings.
Water splits into tiny particles and vapor due to heating of the carbon dioxide to 60 °C and oxygen to 100 °C, therefore the separated gases evaporate.
To avoid vaporization and cavitation at the pump water supply, follow the manufacturer’s recommendations.
Minimum water level ( as defined by the manufacturer ), in the degassing pump should not exceed level of the hole.
| FEAUTURES |
| Capacities |
1000 - 30.000lt |
| Operating Pressure |
0,2 bar |
| Temperature |
102 °C |
| Type |
Cylindrical-Horizontal-Vertical |
| Design Code |
CE marked as per Pressure Equipment
(PED 97/23/AT) .
|
| Design Standart |
EN12953 |
| Material |
|
| Diffuser |
Stainless steel 316 |
| Tank |
Stainless steel or carbon steel |
| Flanges |
Stainless steel or carbon steel |
| Insulation |
Mesh wire rockwool
Colored electrostatic powder coated carbon
steel sheet
|
