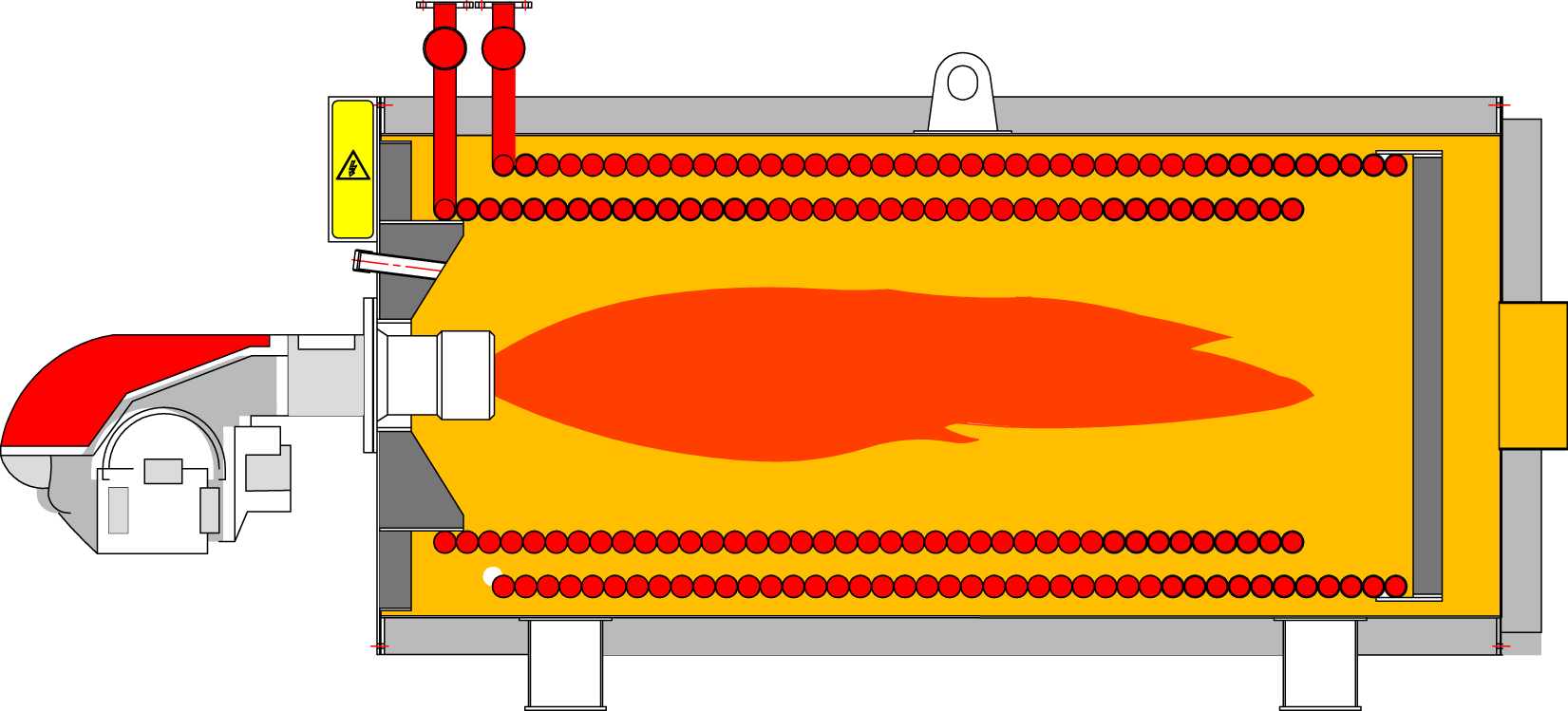

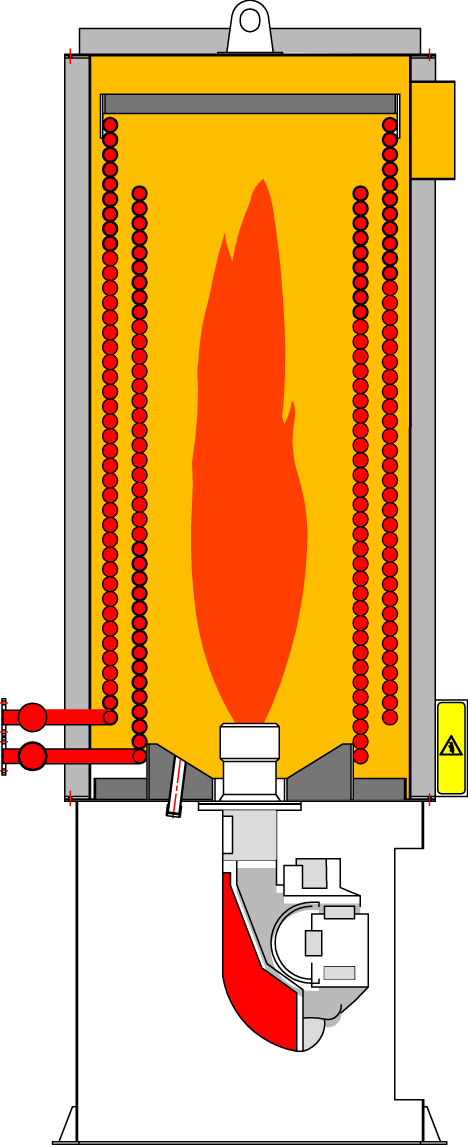

Horizontal and Vertical Type
Product Description
Technical Data
Documents
Fiyat Listesi
| USAGE AREAS |
| ■ Places that need 300°C high temperatures, |
■ Special conditions for thermal oil are not required, |
| ■ Presents ease of usage and maintenance, |
■ Places that need complete set of boiler room, |
| ■ Pipes scale formation or acculation of sludge in term is prevented, |
■ Can be activated immediately with electricity, oil and stack connection. |
| ADVANTAGES |
| ■ Thermal oil which is used as the heat transfer in the system, does not leaves residues, scale in plumbing and does not constitute corrosion, |
■ Special conditions for thermal oil are not required. |
| ■ Thermal insulated. |
■ Allows access to high temperatures without pressure, |
| ■ Could be also used for generating steam, super heated water and hot water if needed. |
■ Softened plant for process water is not required. |
|
■There are no problems such as condensate losses,
|
■ Staircase and platform provides easy and safe acces between floor levels and boiler, |
| ■ Alumina-doped refractory is resistant to high temperature,durable and insulated |
■ Can be used with different types of burners, |
| ■ It is a compact structure consisting of; burner, pumps, fixtures, degasser, expansion tank, thermal oil reserve tank, chimney and electrical panel. |
| FEAUTURES |
| Heat Capacities |
100.000-10.000.000kcal/h |
| Boiler Efficiency |
%85-90 |
| Max.Operating Pressure |
3-10bar |
| Max.Temperature |
340°C |
| Type |
Cylindrical-Horizontal |
| Fuel |
Liquid (Diesel-Fuel Oil)
Gas (Nature Gas -LNG-CNG-LPG-Biogaz)
|
| Design Code |
CE marked as per Pressure Equipment Directive
(PED 97/23/AT) .
|
| Design Standart |
EN 12953 |
| Material |
|
| Rears |
Heat resistant steel sheet in grade HI-HII |
| Shell |
P235GH-P265GH |
| Tubes |
P235GH-St35.8 |
| Flanges |
P235GH-P265GH |
| Insulation |
Mesh wire rockwool
Colored electrostatic powder coated carbon
steel sheet
|
| Refractory |
Resistance to high temperatures (1500 °C),
thermal shock and overload, high impact strenght. |
