| USAGE AREAS |

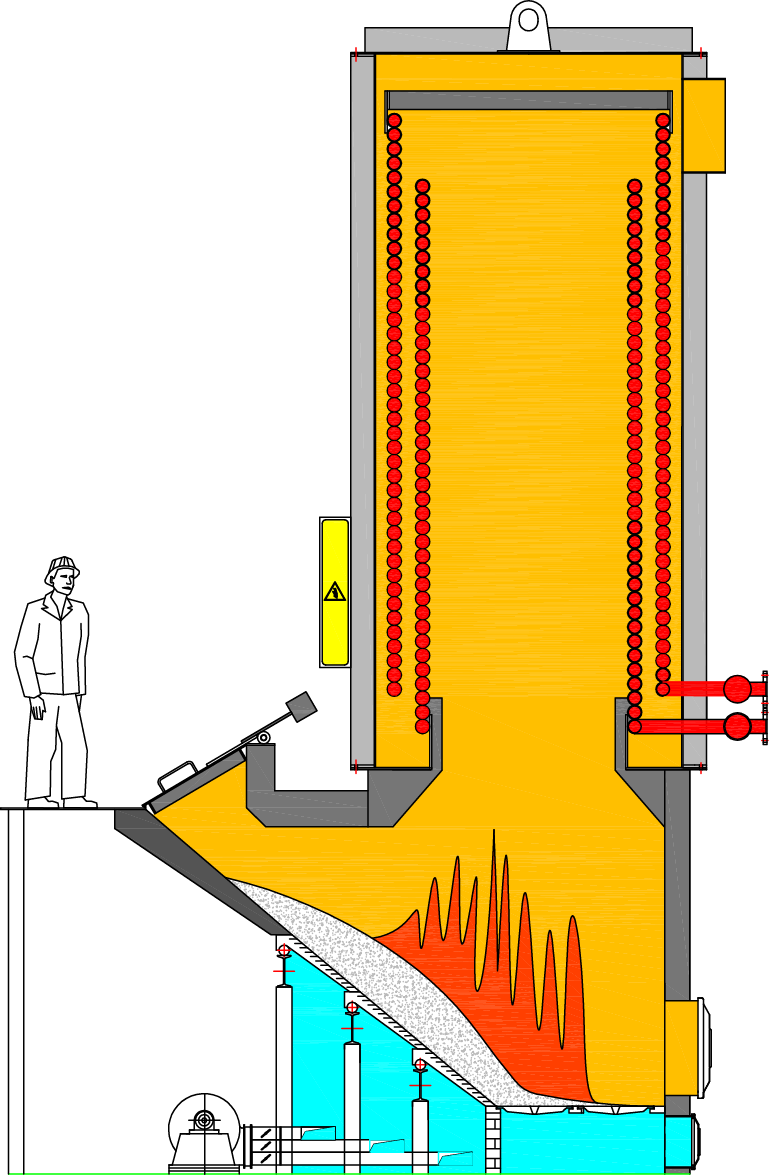

| ■ Grid has been specially designed for the combustion of solid particulate fuel, combustion time may be different due to non-standard sizes. |
■ Usually preferred by: wood, werzalit, paper, oil, petrol and chemical factories. |
| ■ It is possible to burn by pneumatic method: pulverized emery, tea waste, husk, coal dust etc. |
|
| ADVANTAGES |
| ■ It is possible to fire solid fuel of different sizes at the same time, |
■ Uses less energy than the mechanical system, |
| ■ Presents easa of usage and maintenance, |
■ Automatic fuel supply door, |
| ■ At the bottom of the unit there are doors, throught which flattens ash cleaning, |
■ Production waste could be incinerated, |
| ■ Burning of particles which are left after grill burning, is performed by a pneumatic furnace. |
■ Two-stage combustion system provides complete combustion with high efficiency. |
| FEAUTURES |
| Heat Capacities |
500.000-6.000.000kcal/h |
| Boiler Efficiency |
80% |
| Max.Operating Pressure |
3-10 bar |
| Max.Temperature |
340°C |
| Type |
Cylindrical-Horizontal |
| Fuel |
Over 5mm Coal and solid fuel |
| Design Code |
CE marked as per Pressure Equipment Directive
(PED 97/23/AT) |
| Design Standart |
EN 12952 |
| Material |
|
| Tubes |
P235GH St35.8 (Tensile Steel) |
| Insulation |
Mesh wire rockwool
Colored electrostatic powder coated carbon
steel sheet
|
| Insulation |
Resistance to high temperatures (1500 °C),
thermal shock and overload, high impact strenght. |
