Condensing Hot Water Boiler
Product Description
Technical Data
Documents
Fiyat Listesi
| USSAGE AREA |
| ■ Places that need rapid hot water, |
■ Can be activated immediately with electricity, water, fuel and chimney connection, |
| ■ Places with small boiler room, |
■ Presents ease of usage and maintenance, |
| ■ Could be cleaned with poor quality water, |
■ Can be used at all places, that wish to consume less fuel with high efficiency. |
| ■ May be installed on the working space of the enterprise, due to low risk of explosion, |
|
| ADVANTAGES |
| ■ Flur gas temperature is reduced by condensating water vapr which is contained in flue gas at elevated temperature. Recovered latent heat is transferred to water and obtain high efficiency, |
■Pre-mix system (perfect ratio of fuel and air) provides complete combustion and 100% efficiency. |
| ■Due to the condensation wich causes deformations completely made of stainless steel, |

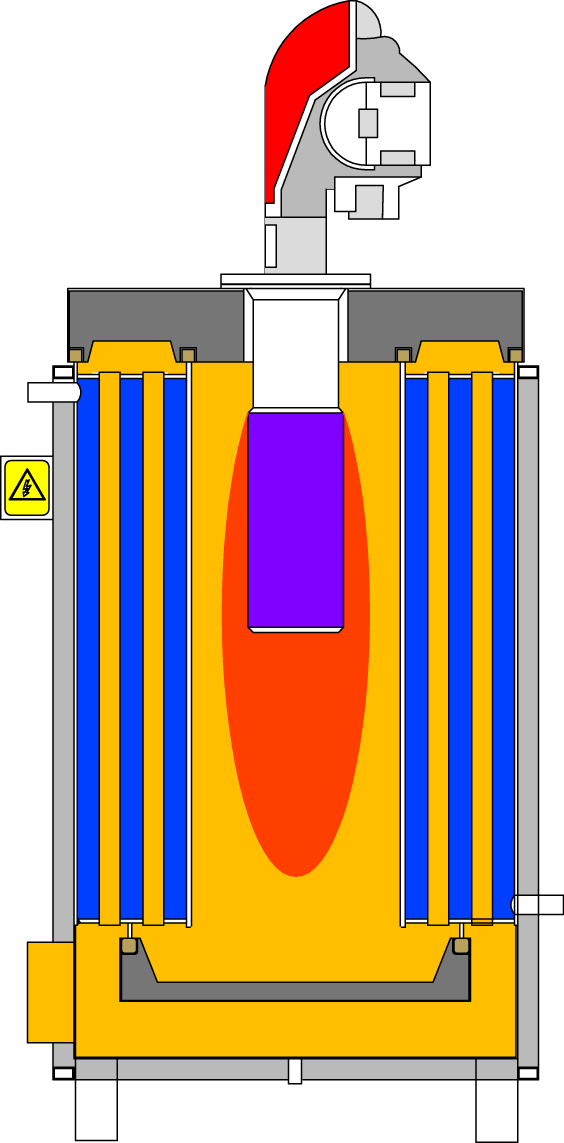

■ Provides lower nitrogen oxide emissions with 3-pass design, |
| ■ Generates rapid hot water, due to low capacity of water, |
■ Premiks system has a low flame height which peovides lower nitrogen oxide emissions, |
| ■ Alumina-doped refractory is resistant to high temperature,durable and insulated |
■ Simple to operate and to maintain |
| ■ Remote control panel, |
■ Low noise levels, |
| ■ With a very small flame geometry it can operate at low capacity range. |
|
| Özellikler |
| Heat Capacities |
35kW-300kW |
| Boiler Efficiency |
30/50°C'de %107
80/60°C'de %97
|
| Max.Operating Pressure |
5 bar |
| Type |
Cylindrical-Horizontal |
| Fuel |
Naturel Gas |
| Design Code |
CE marked as per Pressure Equipment Directive
(PED 97/23/AT) .
|
| Design Standart |
EN 12953 |
| Burner Type |
Premix |
| Material |
|
| Tubes |
Stainless Steel |
| Lower smoke box |
Stainless Steel |
| Rears |
Stainless Steel |
| Body |
P235GH Carbon Steel |
| Insulation |
Mesh wire rockwool
Colored electrostatic powder coated carbon
steel shee
|
| Refractory |
Resistans to high temperature (1250°C)
refractory concrete |
