Automatic Feeding (Stoker)
Product Description
Technical Data
Documents
Fiyat Listesi
| USAGE AREAS |
| ■ Placs that need low capacities rapid steam generation by firing coal, |
■ Fully automatic and safe operation, |
| ■ Places with small boiler room, |
■ Can be activated immediately with electricity, water, fuel and stack connection, |
| ■ Olaces that aims to reduce fuel coats, |
■ No risk of explosion, |
| ■ Places that need complete set of boiler room, |
| ADVANTAGES |
| ■ Due to low water capacity, generates rapid hot water, |
■ Can easily fit in a small areas, |
| ■ Can be used poor quality water in cleaning, |
■ Pipes could be changed incase of long term usage, |
| ■ Provides lower pollutant emmissions, wiht less than1,3MW/m³ furnace load, |
■ Heat loss is prevented by mesh wire rockwool insulation, |
| ■ Alumina-doped refractory is resistant to high temperature,durable and insulated, |
■ Simple to operate and to maintain, |
| ■ Easy to acces while cleaning due to front and back domes, |

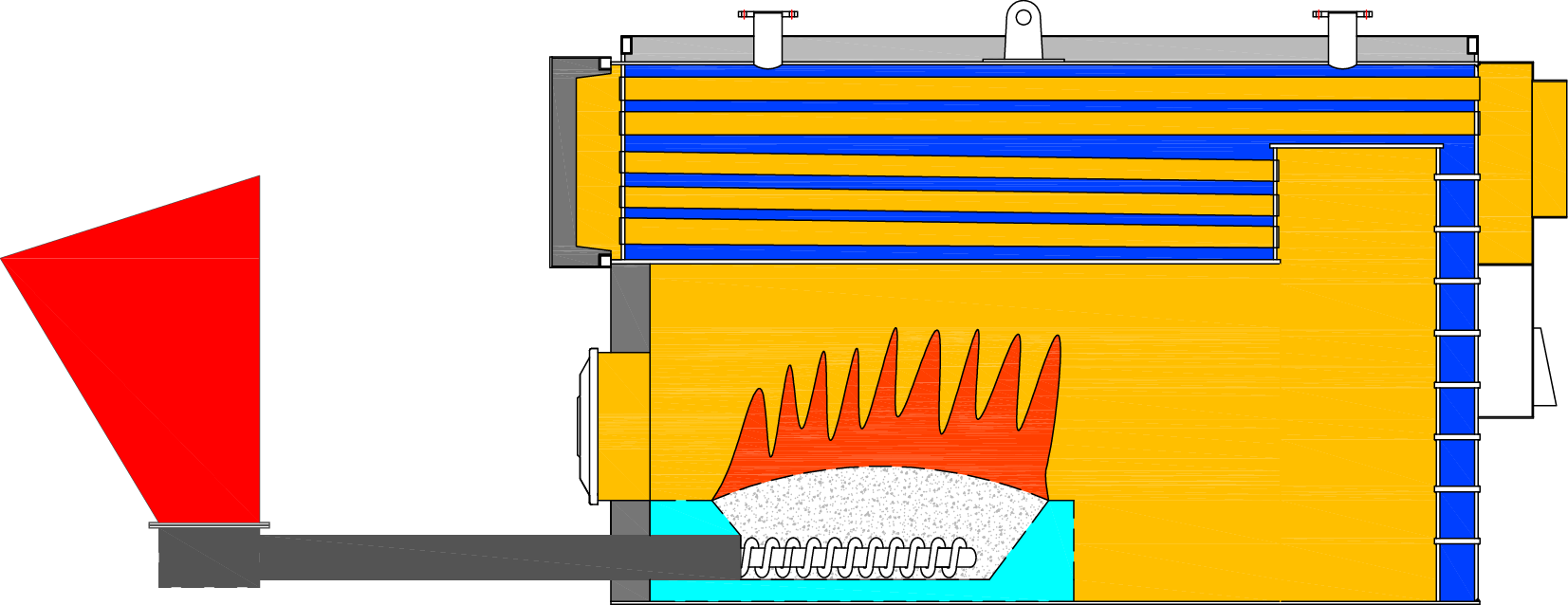

■ It is a compact structure consisting of; burning stocker and fan, |
| ■ Could be easily converted on to Gas-Liquıid fired system whwn needed, |
■ Remote control panel, |
| FEAUTURES |
| Heat Capacities |
50.000-1.000.000kcal/h |
| Boiler Efficiency |
80-85 |
| Max.Operating Pressure |
0,3-10bar |
| Max.Temperature |
110°C |
| Type |
Semi Cylindrical-Horizontal |
| Fuel |
Over 5mm Coal and solid fuel |
| Design Code |
CE marked as per Pressure Equipment Directive
(PED 97/23/AT) . |
| Design Standart |
EN 12953
|
| Material |
|
| Furnace |
Plain heat resistant steel sheet in grade HI-HII |
| Rears |
Heat resistant steel sheet in grade HI-HII |
| Shell |
P235GH-P265GH |
| Tubes |
P235GH-St35.8 |
| Flanges |
P235GH-P265GH |
| Insulation |
Mesh wire rockwool
Colored electrostatic powder coated carbon
steel sheet
|
| Refractory |
Resistance to high temperatures (1500 °C),
thermal shock and overload, high impact strenght |
