| USSAGE AREA |
■ Residental areas
■ Airports |
■ Factories
■ Places that need max 90°C hot water |
■Hotel
■ Greenhouses |
■ Boiler costs low, the combustion efficiency is high. |
| ADVANTAGES |
| ■ Due to the low water capacity, generates rapid hot water, |
■ Can easily fit in a small areas, |
| ■ Compatible with hard and dirty water, |

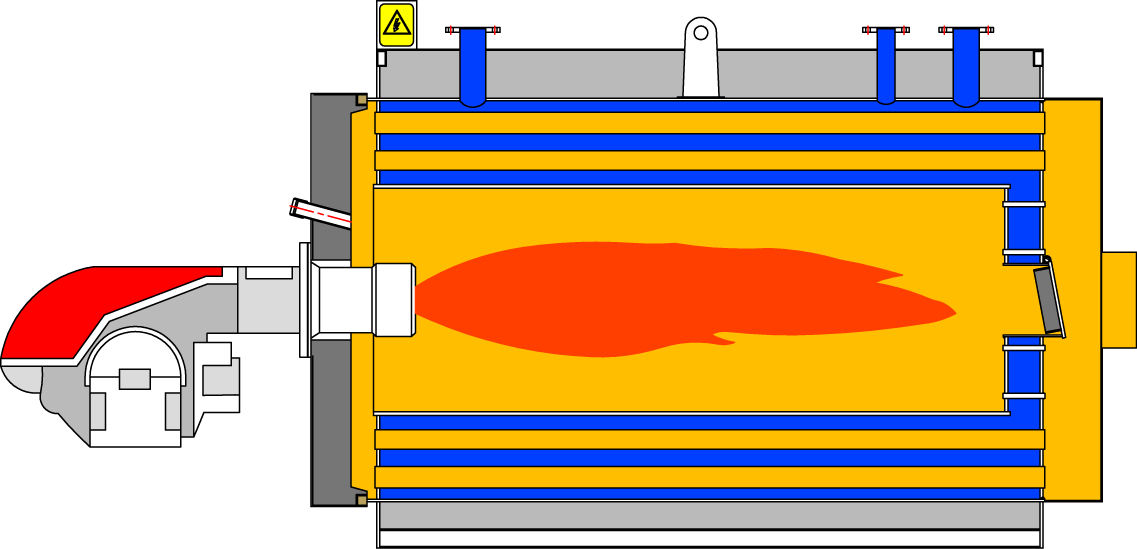

■ Flame reversible large combustion cell provides, high efficiency by burning gases which were left unburnt inside furnace, |
| ■ Heat transfer by radiationis higher . 60% heat transfer is taken from the furnace, |
■ Pipes could be changed, |
| ■ Tirbulators which are placed inside flues, provide continuous turbulence of the combustion and heat conduction of boiler water accurs at the highest level, |
■ Fully automatic and safe, |
| ■Simple installation and maintenance. |
■Alumina-doped refractory is resistant to high temperature,durable and insulated |
| ■Simple to operate, |
■ Can be used with different types of burners, |
| |
| DISADVANTAGES |
| ■ Do not preferred at 3500kW and higher capacites. |
■ High counter pressure. |
| FEAUTURES |
| Heat Capacities |
80.000-3.000.000kcal/h (93-3488kW) |
| Boiler Efficiency |
%90-92 |
| Max.Operating Pressure |
5bar |
| Max.Temperature |
90°C |
| Type |
Cylindrical-Horizontal |
| Fuel |
Liquid (Diesel-Fuel Oil)
Gas (Nature Gas -LNG-CNG-LPG-Biogaz)
|
| Design Code |
CE marked as per Pressure Equipment Directive
(PED 97/23/AT) |
| Design Standart |
EN 12953 |
| Material |
|
| Furnace |
P235GH-P265GH |
| Rears |
P235GH-P265GH |
| Shell |
P235GH-P265GH |
| Tubes |
P235GH-St37.2 |
| Flanges |
P235GH-P265GH |
| Insulation |
Mesh wire rockwool
Colored electrostatic powder coated carbon
steel sheet
|
| Refractory |
Resistance to high temperatures (1500 °C),
thermal shock and overload, high impact strenght |
